Branch circuits are the individual current paths that supply power to each load in an entertainment electrical system. Every luminaire, every motor, every piece of equipment on the rig is at the end of a branch circuit. Setting up branch circuit wiring — routing, connecting, protecting, and testing each circuit — is one of the most time-intensive tasks of load-in and one of the areas most thoroughly tested in ETCP Domain 1C.

Branch Circuit Fundamentals

A branch circuit, as defined by NEC Article 100, is the circuit conductors between the final overcurrent device protecting the circuit and the outlet(s). In entertainment, the final overcurrent device is typically the dimmer module or relay module in the rack; the outlet is the stage pin receptacle on the batten, drop box, or outlet strip (National Fire Protection Association [NFPA], 2023).

The NEC requirements for branch circuits in entertainment are primarily addressed through NEC Article 530 (Motion Picture and Television Studios) and NEC Article 520 (Theaters, Audience Areas, and Similar Locations). Both articles acknowledge the temporary and portable nature of entertainment branch circuit wiring while enforcing fundamental safety requirements.

Conductor Sizing

In entertainment, the standard branch circuit is 12 AWG (rated 20A) from a 20A dimmer output to a 20A stage pin outlet. The load on a 20A circuit must not exceed the outlet’s rating. A single 2,000W tungsten-halogen luminaire draws 16.7A — within the 20A rating but leaving little headroom. Two 1,000W units on a shared circuit would draw 16.7A combined, also acceptable, but a single 2,000W fixture plus any additional load on the same circuit would exceed 20A (NFPA, 2023).

The conductor must be rated for the environment. In dry indoor locations, SOOW or SJTW flexible cord is standard for branch circuit runs. In outdoor or damp locations, SOOW (oil-resistant, weather-resistant) is required. See Article 8 (Environmental Applications) for wet location requirements.

Routing Branch Circuit Cable

Branch circuit cable runs must be routed to avoid:

• Mechanical damage: Cables crossing pedestrian paths must be protected by cable ramps. Cables in roadways require rated cable bridges. Never run cable where it can be rolled over by heavy equipment without protection.
• Heat sources: Branch circuit cable must not contact hot lamp housings, heating elements, or surfaces that could damage the cable jacket.
• Trip hazards: Cables crossing audience areas or backstage paths should be taped down or run overhead wherever possible. Running cable under floor coverings is a violation of NEC 400.12.
• Bundling with other cables: Power cables should be routed separately from signal cables. Running DMX or audio cables parallel to dimmer branch circuits over long distances induces interference. Cross perpendicular when paths must intersect (NFPA, 2023).

Outlet Box Installation

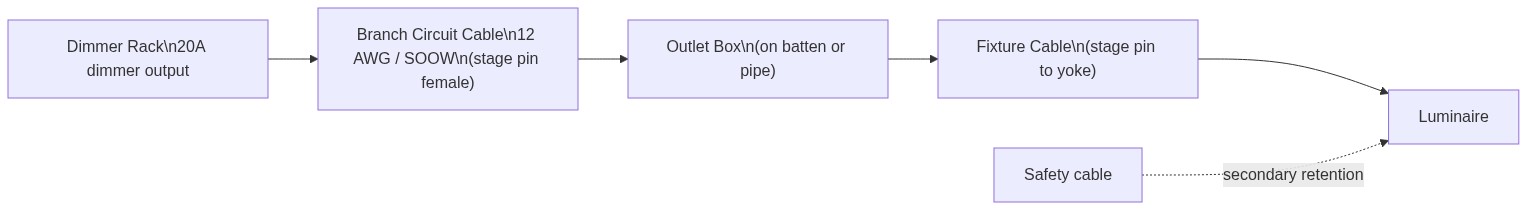

Outlet boxes (also called drop boxes, circuit strips, or raceway strips) mount on the batten, pipe, or truss and provide the stage pin receptacles at the fixture position. Outlet boxes used in entertainment must be listed for the application and rated for the current and voltage of the circuits they serve. A 6-circuit outlet strip typically contains six 20A stage pin receptacles; a 12-circuit strip contains twelve.

Outlet boxes must be secured to the hanging position — they cannot be left hanging by the circuit cable alone. Most outlet boxes include mounting holes or yokes for pipe mounting. Verify the mounting hardware is tight and add a safety cable from the outlet box to the pipe if the box is positioned overhead. A falling outlet box with live circuits is both a shock hazard and a physical hazard to personnel below (NFPA, 2023).

The Dim-Check: Verifying Every Circuit

After all branch circuits are connected, a dim-check verifies that every circuit is correctly wired and correctly patched. The dim-check is performed from the lighting console:

1. Set the console to display all channels in the patch
2. Take each circuit/channel to full intensity, one at a time
3. An electrician on the stage or in the lighting position visually confirms which fixture(s) responded and calls the circuit number to the console operator
4. Any circuit that fails to illuminate, or that illuminates the wrong fixture, is noted and corrected before tech begins

Common dim-check failures and their causes:

• No response: Breaker tripped, connection not made, cable damaged, fixture lamp burned out
• Wrong fixture responds: Patch error (wrong console address assigned to circuit), or cables connected to wrong outlet
• Partial response: Dimmer set to wrong mode (relay vs. dim), or fixture mode incompatible with circuit type
• Flicker: Loose connection at fixture, stage pin, or dimmer output; cable damaged

Labeling

Every circuit in an entertainment system must be labeled at both ends: at the dimmer rack output and at the outlet. NEC Article 408 requires circuit directory labeling on all panelboards. In entertainment, this translates to circuit labels on outlet boxes identifying the dimmer rack and circuit number feeding each outlet. Unlabeled circuits create troubleshooting delays and safety hazards when a circuit needs to be de-energized quickly (NFPA, 2023).

References

Entertainment Technician Certification Program. (2023). Entertainment electrician examination content outline. ESTA.

National Fire Protection Association. (2023). NFPA 70: National Electrical Code, Article 520 — Theaters, Audience Areas of Motion Picture and Television Studios, Performance Areas, and Similar Locations. NFPA.

National Fire Protection Association. (2021). NFPA 70E: Standard for electrical safety in the workplace. NFPA.

Occupational Safety and Health Administration. (2015). 29 CFR 1910.303: General requirements — electrical. U.S. Department of Labor.

Occupational Safety and Health Administration. (2015). 29 CFR 1910.305: Wiring methods, components, and equipment for general use. U.S. Department of Labor.
