Entertainment Utilization Equipment: Luminaires, Video, Audio, Automation, Effects, and Network Systems

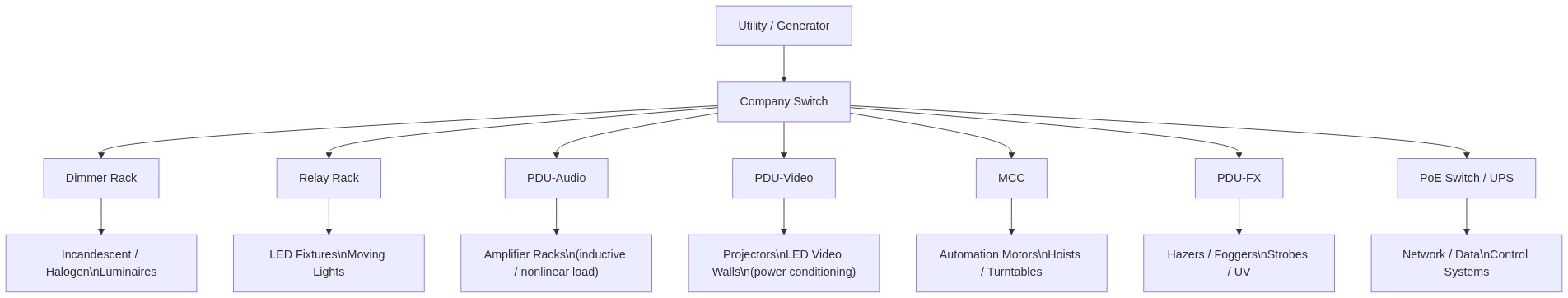

Utilization equipment is everything that consumes power in an entertainment production — every luminaire, projector, amplifier, automation motor, and data network device. The entertainment electrician must understand how each equipment category draws power, what kind of circuit it requires, and what special provisions each demands. Domain 1E of the ETCP exam includes all of these equipment types. Planning the system correctly requires knowing the electrical characteristics of each load well before load-in day.
Luminaires
Luminaires — light-producing fixtures — fall into three electrical categories that have profoundly different power requirements:
Conventional incandescent and tungsten-halogen luminaires (ellipsoidal reflector spotlights, Fresnels, PARs, strip lights) are purely resistive loads. Current and voltage are in phase, power factor is 1.0, and they are fully compatible with phase-cut dimming. A 575W ellipsoidal at 120V draws 4.79A. A 2000W Fresnel draws 16.7A — approaching the limit of a 20A dimmer circuit. Tungsten-halogen lamps draw approximately six times their running current for the first few cycles at power-on due to cold-filament resistance; dimmer systems include thermal limiting that handles this inrush (Cadena, 2009).
LED luminaires contain switching power supplies that convert AC input to DC for the LED array. This makes them non-linear loads: they draw current in pulses rather than a smooth sine wave, creating harmonic currents that can cause neutral conductor overloading in systems with many LED loads on the same phase. LED fixtures must be connected to relay (non-dim) circuits, not SCR dimmers, unless the dimmer is specifically rated for electronic load dimming. Many LED fixtures incorporate RDM (ANSI E1.20) for remote addressing and status reporting.
Moving lights are intelligent fixtures with onboard motors, color systems, and optics, all controlled via DMX512. They range from approximately 500W for smaller automated wash fixtures to 1,500W or more for high-output profile moving lights. Moving lights require relay circuits, have significant harmonic content, and some require a warm-up period after cold-start. Power sequencing moving lights (bringing them up a few at a time rather than simultaneously) reduces inrush and voltage sag on the supply circuit.
Video and Projection Equipment
Large-format projectors draw 800W to 2,500W depending on lamp type and brightness class. High-pressure discharge lamp projectors (HID, mercury vapor) require a warm-up period before full output and a cool-down cycle after shutdown — removing power from a hot HID projector immediately can destroy the lamp. Laser projectors have no such requirement but may need a specific sequence for laser enable/disable.
LED video wall panels are individually rated at 150–500W but are deployed in large quantities — a 30-by-10-foot wall of 500mm panels may contain 60 or more panels, representing 9,000–30,000W of total load. The load is non-linear, and the aggregate neutral current from harmonic content can approach or exceed the phase conductor current in large LED wall installations. K-rated transformers or de-rated conductors are required when this condition is calculated to exist (National Fire Protection Association [NFPA], 2023).
Audio Systems
Audio amplifier racks are among the most electrically demanding loads in entertainment. A professional amplifier rack may contain 20 or more amplifier modules, each rated at 1,000–2,000W. Power sequencers — devices that bring amplifiers online one at a time with a delay between each — are essential to prevent the simultaneous inrush current of a full rack from collapsing the supply voltage or tripping the distribution breaker.
Audio systems benefit from isolated or technical ground connections. An isolated equipment grounding conductor runs from the equipment rack directly to the grounding electrode system without connecting to the distribution equipment enclosure. This reduces the noise coupling from dimmer systems into sensitive audio electronics. NEC 250.146(D) permits isolated grounding receptacles for this purpose (NFPA, 2023).
Automation and Control Equipment
Automation motors for tracked scenery, turntables, lifts, and chain hoists are inductive loads that must not be connected to dimmer circuits. Variable frequency drives (VFDs) convert AC power to a variable-frequency output for speed control of three-phase motors. Each VFD circuit requires a dedicated breaker sized per the VFD nameplate input current, a dedicated neutral (shared neutrals cause interference between VFDs), and clean incoming power — VFDs are sensitive to voltage sags and surges.
Emergency stop (e-stop) circuits for all automation equipment must be hard-wired to interrupt motor power independently of any software or control system. The e-stop circuit must be tested and proven before any automation sequence begins (ESTA, 2019).
Special Effects Equipment
Fogger and hazer machines use resistive heating elements (1,000–2,000W) to vaporize fluid. They can be connected to standard dimmed or relay circuits. They require a warm-up period before producing output, and fluid level must be monitored to prevent the heater from running dry and burning out.
Strobe lights contain large capacitors that charge from line voltage and discharge through a xenon flash tube. The rapid capacitor charging creates a non-linear pulsed current draw that can cause circuit breakers to nuisance-trip if multiple strobes are connected to the same 20A circuit. Strobe flashing rates between 3 and 50 Hz can trigger photosensitive epilepsy; production announcements are standard practice for performances using visible strobes (Cadena, 2009).
Data and Network Systems
Modern entertainment productions rely on an Ethernet network for lighting control (Art-Net, sACN), audio (Dante, AES67), video (NDI, SMPTE 2022), and automation (EtherNet/IP). The network infrastructure — managed switches, wireless access points, network-attached storage, and control computers — must be powered from a UPS (uninterruptible power supply) in production environments. A brief power interruption that causes a lighting console to restart takes the show dark and can require several minutes to recover. UPS autonomy should be sufficient to survive a momentary power interruption and allow an orderly shutdown if power is not restored.
PoE (Power over Ethernet) switches supply power to RDM nodes, wireless access points, and IP intercoms through the Ethernet cable. A 24-port PoE+ switch may consume 60–200W when fully loaded. All network equipment enclosures must be grounded as part of the overall equipment bonding system (NFPA, 2023).
Utilization Equipment Power Reference
| Category | Typical Load | Load Type | Key Electrical Considerations |
|---|---|---|---|
| Incandescent luminaires | 575W – 2,000W each | Resistive | Dimmer-compatible; high inrush at cold start |
| LED luminaires | 40W – 500W each | Non-linear (switching supply) | Relay circuit required; power factor may be <1.0; RDM capable |
| Moving lights | 500W – 1,500W each | Non-linear | Relay circuit; high harmonic content; need clean AC |
| Projectors | 800W – 2,500W each | Non-linear | Power conditioning (AVR/UPS); cool-down cycle before power removal |
| LED video walls | 150W – 500W per panel | Non-linear | Many panels = significant total load; neutral current from harmonics |
| Audio amplifiers | 1,000W – 5,000W per rack | Non-linear | High inrush current; require power sequencer; isolated ground recommended |
| Automation motors | 0.5 – 20 HP per motor | Inductive | Relay / VFD circuit only; e-stop wiring; dedicated neutral recommended |
| Foggers / hazers | 1,000W – 2,000W | Resistive (heating element) | Standard dimmed or relay; fluid level monitoring |
| Strobes | 100W – 500W (capacitive) | Non-linear | High peak current demand; relay circuit |
| Network / PoE switches | 60W – 200W per switch | Non-linear | UPS recommended; isolated from show power noise |
References
Cadena, R. (2009). Electricity for the entertainment electrician & technician. Focal Press.
Entertainment Services and Technology Association. (2019). ANSI E1.6-1-2018: Entertainment technology — Powered hoist systems. ESTA.
Entertainment Technician Certification Program. (2023). Entertainment electrician examination content outline. ESTA.
National Fire Protection Association. (2023). NFPA 70: National Electrical Code. NFPA.
